SKU:
100620-EKO
BRAND:
KFI

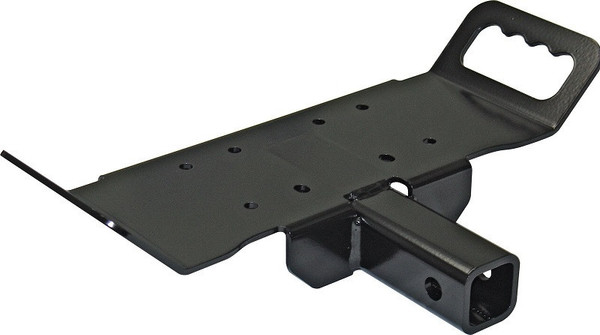

Compact and durable winch mount for Kawasaki Mule / Teryx - strong 2 receiver design by KFI
Read More
Add loads of functionality to your Kawasaki Mule / Teryx with the 2-Inch Receiver Winch Mount by KFI. Constructed of 3/16” steel and powder-coated after a metal bead blasting, this mount features the best possible makeup and easily takes on the harsh elements of the trail. With a simple installation, the 2-Inch Receiver Winch Mount for the Kawasaki Mule / Teryx elevates the performance of your UTV to a whole new level. Simply lock in your winch, and you are ready to pull your buddy out of the mud or tow a trailer full of crops. This 2-Inch Receiver Winch Mount is made entirely in the U.S.A.
2-Inch Receiver Winch Mount Features:
- Constructed of 3/16" steel
- Metal bead blasted before powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Made in the U.S.A.
Compatible Winches:
- KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AS-50 / AS-50w
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN: AXON 35 / AXON 35-S / AXON 45RC
- WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
Will require Winch Spacer #101210 to fit. - WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
- WARN: RT40 / XT40
- WARN: Vantage 4000lbs / Provantage 4500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- MASTER LOCK : 1500lbs #2955AT
- Requires a Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF) - CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
- BADLAND : 2-Hole Winches
- BADLAND : Standard Winches
- BADLAND : WIDE Winches
- CHAMPION : 2-Hole Winches
- CHAMPION : Standard Winches
- CHAMPION : WIDE Winches
- CHAMPION : 14001 and 14061
- SMITTYBILT : XRC 2.0
- Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
- Listed Models come with incorrect ATV Roller Fairleads - SMITTYBILT : XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern) - KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
- All with 3.00" x 4.875" Bolt Pattern mount-up
- All with 3.00" x 6.600" Bolt Pattern mount-up - Traveller : 2-Hole Winches
- Traveller: 1078311
- Requires a Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF) - Possibly Many others with the below standard Mounting patterns (call to confirm)
- 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
- 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern)
- 2-Hole (3.10" with Rollers that are 4.875" bolt pattern)
NOTE:
- This mount requires a Roller Fairlead Bracket that comes with most of the winches out there. If your winch kit did not come with a fairlead bracket you will need KFI part
- This winch mount is not compatible with SuperATV Band winches
